Robotic
service Robot
Humanoid Robot
Model: 103

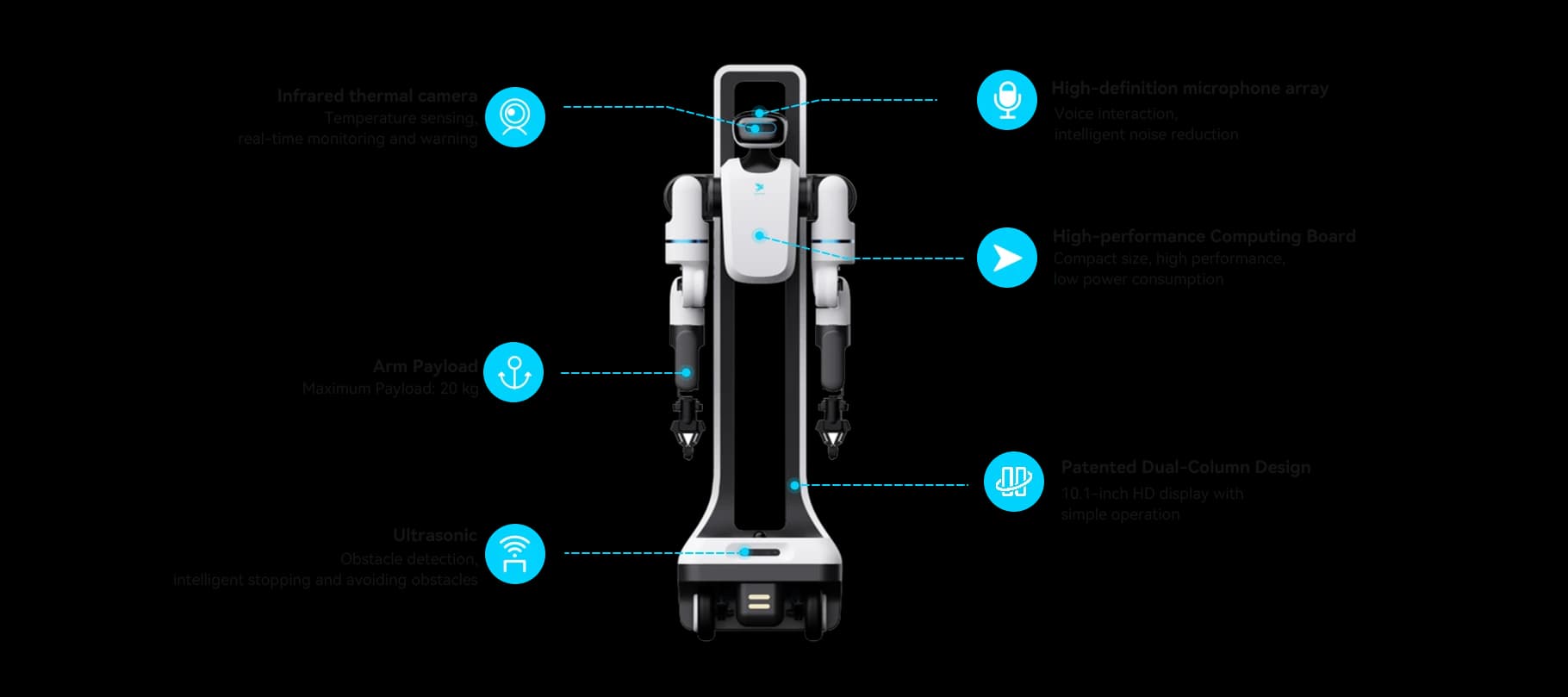

Humanoid Robot .World's First Dual-Column Wheeled Humanoid Robot .Four-Wheel Drive & Four-Wheel Steering Chassis .Patented Dual-Column Design .Smart Star" Large Model .Payload: 20 kg
Country of Origin
china
Technical Information
Technical Specifications
Specifications
| Parameter | Specification | Parameter | Specification |
| Length × Width × Height | L550 × W500 × H1800 mm | Weight | About 100 kg |
| Maximum Flat Bottom Speed | 1.0 m/s | Maximum Climbing Angle | 5° |
| Maximum Ditching Width | 100 mm | Battery Type | LFP Battery |
| Obstacle Clearance Height | 50 mm | Battery | 48V 30Ah |
| Minimum Braking Distance | 400 mm | Average Power | 500 W |
| Maximum Arm Payload | 20 kg | Endurance | 10 h |
| Charging Time | 3 h | Charging Method | Manual Charging |
| Microphone Type | Linear Microphone Array | Chassis Type | Four-Wheel Differential Chassis |
| Ingress Protection | IP54 | Voice Interaction | Support |
| Network | 4G / 5G / Wi-Fi | Ambient Temperature | -10~60°C |
